FiiO SP5 Hong Kong Version High-Fidelity Active Desktop Speaker

Professional All-Round Desktop Active Speakers
Professional sound quality, comprehensive features, applicable to multiple scenarios

Inheriting the successful DNA of the SP3, the SP5 is designed for audiophiles pursuing excellent sound quality and expansive spatial performance. It is equipped with larger professional-grade acoustic units, providing more powerful power output, featuring rich input interfaces, and supporting precise frequency adjustment. It is no longer confined to the desktop, but can seamlessly integrate with your desktop system to build a complete home Hi-Fi audio system. Whether for audiophile music appreciation, immersive listening in the living room, audio-visual entertainment in the study, or professional audio editing, the SP5 can handle it all with ease, presenting an awe-inspiring professional-grade soundstage, allowing you to freely enjoy an auditory feast every moment.

1-inch composite silk soft dome
Tweeter, smooth and delicate, presenting clear and transparent high frequencies

The SP5's tweeter is not only meticulously selected in material, but its acoustic design also reveals true mastery. The FIIO acoustic team innovatively transformed the soft hemispherical structure inside the dome into a highly efficient sound absorber, precisely absorbing harmful harmonics on the back of the diaphragm, significantly enhancing the purity and transparency of the high frequencies. To achieve the high-end Hi-Fi goals of low resonance and high load-bearing capacity, the SP5 adopts a breakthrough large rear cavity design. This design astonishingly lowers the high-frequency response down to 800Hz, and ensures that even when the diaphragm operates in the ultra-high frequency band above 20kHz, it can easily release pressure, substantially suppressing body resonance.

Dome Tweeter Magnetic Circuit Cooling Technology
The SP5's high-frequency performance is further sublimated: silky smooth and delicate, leisurely and expansively presenting every subtle detail in the music to your ears.*Dome Tweeter Magnetic Circuit Cooling Technology: A magnetic fluid cooling vibration reduction technology that provides high frequencies with better resolution and extension.

Tweeter Acoustic Waveguide Technology
Based on the needs of near-field listening, the SP5's tweeter is designed with a precise acoustic waveguide that accurately controls the axial radiation angle of the treble. The horizontal stripes on the front of the tweeter unit extend from front to back, greatly enhancing the lateral diffusion soundstage.

60W*2 + 20W*2 Independent Four-Channel Power Output
Precise Release of Surging Energy

The SP5 is equipped with one renowned Texas Instruments TI TPA3116D2 Class-D stereo digital power amplifier in both the primary and secondary speakers to independently drive each channel. The mid-woofer peak output power reaches up to 60W*2, and the tweeter peak output power reaches up to 20W*2. The TPA3116D2 features short-circuit and thermal protection, as well as over-voltage, under-voltage, and DC protection, providing comprehensive prevention against faults. Under overload conditions, the device will report the fault condition to the processor, thereby avoiding damage to itself.

XLR Balanced Input
The Pure DNA of Professional Audio

XLR balanced interfaces are commonly found in professional audio equipment. Compared to standard RCA interfaces, their main advantage lies in strong anti-interference capabilities, making them suitable for long-distance transmission while providing higher-quality audio signals. The SP5 is equipped with professional-grade XLR balanced input interfaces, utilizing three-core differential transmission to synchronously transmit the hot (+) and cold (-) signals, with the ground wire independently shielding against external electromagnetic interference. This achieves a common-mode noise rejection ratio of >90%, completely solving noise pollution in long-distance transmission!

*When the primary speaker is using XLR input, the secondary speaker can only receive XLR input.
*When using XLR input, the RCA audio connection cable does not need to be connected.
*XLR input supports both XLR3 and TRS 6.35 formats.
*Independent volume adjustment is supported during XLR input.

Supports HD Bluetooth such as LDAC / aptX Adaptive
Codecs, Enjoy Great Wireless Sound Quality

The SP5 has a built-in Qualcomm QCC5125 Bluetooth chip, equipped with high-fidelity 24-bit audio processing technology. The integrated advanced DSP can provide personalized audio enhancements to elevate the listening experience. It supports multiple Bluetooth codecs including SBC, AAC, aptX, aptX LL, aptX HD, LDAC, and aptX Adaptive to meet high-end wireless sound quality demands. It can wirelessly transmit high-bitrate audio up to 990kbps, allowing you to enjoy richer wireless audio details. Thanks to the support of high-resolution lossless digital input and LDAC HD codec, the SP5 has also obtained the dual Hi-Res Audio and Hi-Res Wireless Audio certifications.
*Bluetooth version: V5.1

Supports FIIO Control APP
Remote Operation, Supports 10-Band PEQ Adjustment

To provide you with a more refined control experience, the FIIO SP5 deeply supports interaction with the FIIO Control APP. After successfully connecting via Bluetooth, you can perform functions such as input source selection / Bluetooth codec selection / RGB indicator settings / power-saving mode settings / equalizer settings / 10-band PEQ adjustment on the APP interface. Through FIIO's self-developed adjustment algorithms and interfaces, you can perform fine-tuning, as well as simulate and correct the speaker's frequency response curve to satisfy personal listening tastes.
*Web-based PEQ setting path: FIIO official website top status bar - Service & Support - Web PEQ Settings (to be provided in a future OTA update).

Diffusion Horizontal Stripes Combined with
Cabinet Curved Surface Anti-Standing Wave Structure
Effectively Eliminates Unwanted Vibrations

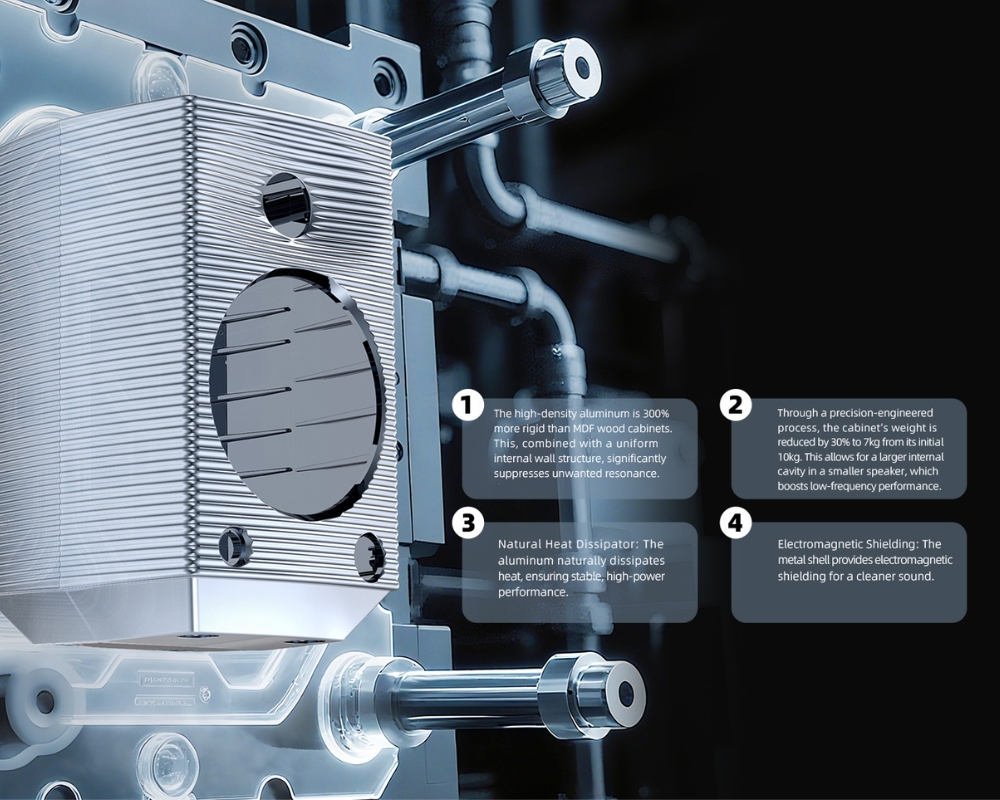

The SP5's housing has undergone a series of meticulous simulations, from the length-width-height ratio designed to prevent standing waves inside the cabinet, to the high-low frequency phase tilt angles. The smooth, arc-shaped edges of the cabinet greatly reduce diffraction on the front panel and cabinet edges, yielding not only a flat frequency response curve but also excellent stereo imaging. The diffusion horizontal stripes on the cabinet surface are not just aesthetically pleasing; every interval is precisely calculated and evenly distributed on the front and side curved surfaces. Acting like a reinforcement rib structure for the cabinet, they can withstand intense vibrations at high volumes. Combined with the cabinet's curved surface anti-standing wave structure, it can even more effectively eliminate unwanted vibrations.
