Description
The Best of Both Worlds! A Hybrid Tube Amplifier
The SWL-T01 is a compact integrated amplifier that condenses the functions of a USB DAC, a headphone amplifier, and a power amplifier into a compact chassis with a footprint roughly the size of a CD jewel case.
In a crowdfunding campaign on "Makuake" starting in August 2023, the project received 6.91 million yen in support, achieving 1382% of its funding goal.
Its configuration is a hybrid amplifier that utilizes a vacuum tube (12AU7) in the pre-amplifier stage and a Class-D amplifier (digital amplifier) in the power-amplifier stage.
By combining the Class-D amplifier, which delivers powerful driving force without taking up much space, with the vacuum tube,
which possesses the analog audio sensibility that digital amplifiers alone cannot express, the compact yet musically rich hybrid amplifier "SWL-T01" was born.
Please enjoy your music in a variety of settings, whether placed on your desktop, in the living room, or at your bedside.
This amplifier features a vacuum tube in the pre-amplifier stage for a soft, warm, and distinctive tone, combined with a digital amplifier in the power-amplifier stage,
known for its low distortion, clarity, and strong driving power. By merging the unique musical charm of a vacuum tube with the powerful drive of a compact digital amplifier, we have achieved a sound that is both warm and crystal clear. We have poured our 20+ years of expertise in developing tube and digital amplifiers into this unit. Please enjoy an authentic sound that you wouldn't expect from such a compact amplifier.
Compact Size & Design that Fits Anywhere
With a footprint nearly identical to a CD jewel case (W 130 x D 145 x H 77 mm / 5.1" x 5.7" x 3.0" *including protrusions),
it is incredibly compact! It can be easily placed on a desk, under a living room TV, or on a bedside table. We also focused on a design aesthetic that allows it to be enjoyed as a piece of interior décor.
Furthermore, it can be powered by a portable power station (one that supports DC 12V output), allowing you to take it along for camping or overnight stays in your vehicle.
*Please note: A separate, dedicated cable may be required when using a portable power station. Please check the specifications of your power station for details.
Transform Your Desk Area into Your Own Premium Sound Space

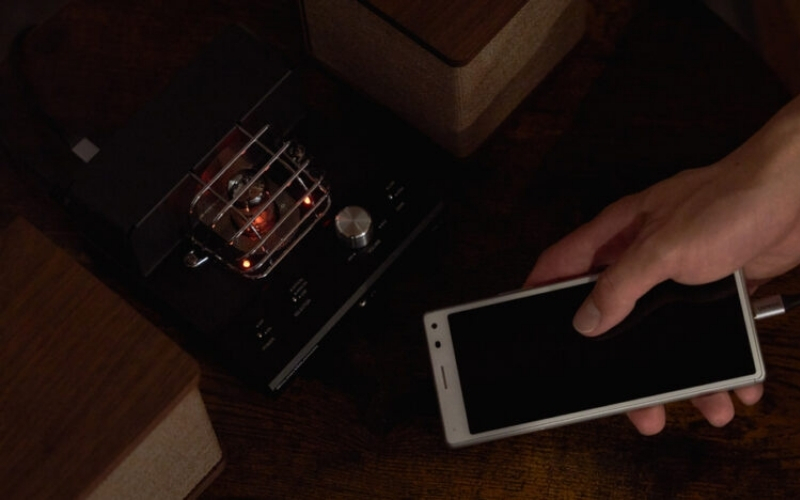

Connect to your PC, smartphone, or tablet with a single USB cable to enjoy digital sources like music streaming services and YouTube.
You can also connect a record player (please use one with a built-in phono equalizer) to enjoy analog audio. The SWL-T01 is the perfect companion for desktop music listening.

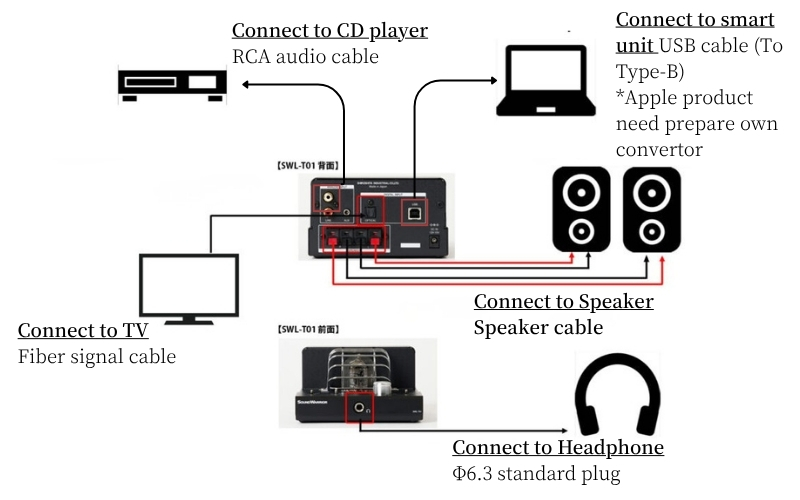

- Supports multiple connection methods
Specifications
| Configuration |
Pre-amplifier stage: Vacuum tube 12AU7 x 1
Power stage: Class-D amplifier |
| Power Voltage |
DC 12V - 15V (AC adapter) |
| Power Consumption |
Max 45W, Approx. 9W (at power on, no signal), Approx. 0.2W (at standby) |
| Dimensions, Weight |
W Approx. 130mm x H 75mm x D 133mm (excluding protrusions), Approx. 0.74kg |
| Digital Input |
| USB Input |
USB Terminal: Type B
Signal Format: USB 1.1
PCM Sampling Frequency: 32 / 44.1 / 48 kHz
PCM Quantization Bit Number: 16-bit |
| OPTICAL Input |
Signal Format: S/PDIF (IEC-60958) 2ch Linear PCM
Sampling Frequency: 44.1 / 48 / 88.2 / 96 kHz
Quantization Bit Number: 16 / 24 bit |
| Analog Input |
| Analog Terminal |
LINE Input: RCA pin jack L/R
AUX Input: 3.5mm stereo mini jack (AUX priority) |
| Input Sensitivity |
LINE Input: 1.38Vrms
AUX Input: 0.24Vrms |
| Speaker/Headphone Output |
| Speaker Output |
SPEAKER Terminal: Speaker terminal L/R
Maximum Output: 10W + 10W (1 kHz, 1%, 8 Ω)
Supported Speaker Impedance: 4 Ω - 8 Ω
Speaker Output Frequency Response: 5Hz - 100kHz (± 3dB) |
| Headphone Output |
PHONES Terminal: Φ6.3 stereo standard jack
Maximum Output: 45mW (LOW / 1 kHz, 1%, 16 Ω)
55mW (LOW / 1 kHz, 1%, 32Ω / 40Ω)
240mW (HIGH / 1kHz, 1%, 300Ω)
Headphone Impedance (GAIN switch guide):
LOW: 16Ω or more and less than 250Ω
HIGH: 250Ω or more |
| Warranty (Month) |
12 |
